Product Introduction

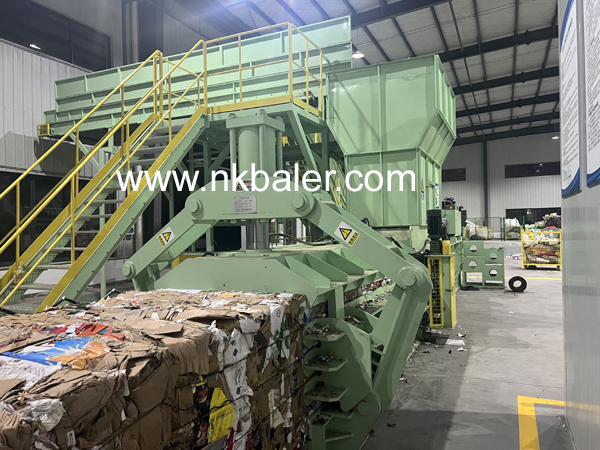

NKW180Q Carton Box Baler Press Machine This machine also has the advantages of high degree of automation, low noise, and convenient maintenance. It is an ideal equipment for the carton processing industry. NKW180Q carton compressed packaging machine can handle the size of 1100mm (width) × 1100mm (height) × ~ 1600mm (long). The main frame weight is about 28 tons, the structure is strong, and the operation is stable. This machine is suitable for compressed packaging of a large amount of carton, cardboard and other materials to improve storage space and transportation efficiency.Usage
NKW180Q carton compression pack machine characteristics include: 1. Simple structure, stable operation, and low failure rate. 2. Adopt advanced hydraulic technology and electrical control systems, which have the characteristics of high efficiency, energy saving and environmental protection. 3. Automatic operation, easy to clean and maintain. 4. The processing size is 1100mm (width) × 1100mm (height) × ~ 1600mm (long) compression package. 5. It is suitable for compressing carton, cardboard and other materials, compress the loose materials into specific shapes, and then packaged.Parameter Table
| Item | Name | parameter |
| mainframe parameter | Bale size | 1100mm（W）×1100mm（H）×～1600mm(L) |
| Material type | ScrapKraft paper, Newspaper, Cardboard ,Soft Film | |
| Material density | 700～800Kg/m3（Moisture 12-18%） | |
| Feed opening size | 2400mm×1100mm | |
| Main motor power | 37.5*2KW+15kw | |
| Main cylinder | YG280/220-2900 | |
| Main cylinder force | 180T | |
| Capacity | 22-25T/H | |
| Max. system working force | 30.5MPa | |
| Mainframe weight(T) | About 28 tons | |
| Oil tank | 2m3 | |
| Mainframe size | About 11×4.3×5.8M（L×W×H） | |
| Tie wire line | 5 line φ2.75～φ3.0mm3 iron wire | |
| Pressure time | ≤30S/ (go and back for empty load) | |
| Chain conveyor technology | Model | NK-III |
| Conveyor weight | About 7 tons | |
| Conveyor size | 2000*12000MM | |
| terra hole size | 7.303M（L）×3.3M（W）×1.2M（deep） | |
| Conveyor motor | 7.5KW | |
| Cool tower | Cool tower motor | 0.75KW（water Pump）+0.25（Fan） |
