Product Introduction

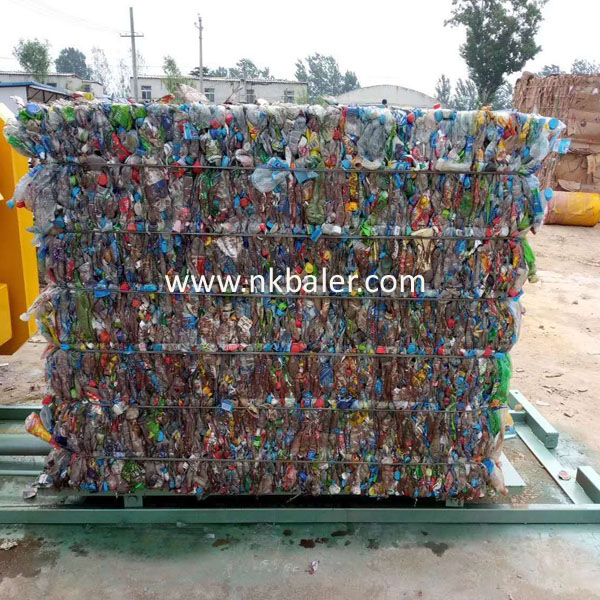

During the operation of NKW100Q PET Bale Press, users only need to put the abandoned PET plastic bottle in the machine, and then start the device to automatically complete the compression work. The compressed PET plastic block can be used directly for regeneration manufacturing, which not only reduces the environmental pollution of plastic waste, but also realizes the reuse of resources. In addition, the NKW100Q PET Bale Press uses advanced hydraulic technology to make the equipment run stable and the compression effect is good. At the same time, the structure of the equipment is simple, easy to maintain, and long service life. In general, this device is an ideal choice for the PET plastic recycling industry.Usage
NKW100Q PET Bale Press is a device specifically used to compress PET plastic bottles. The characteristics are as follows: 1. Efficient: Adopt advanced hydraulic technology, which can compress the PET plastic bottle into a compact block, which greatly improves storage and transportation efficiency. 2. Save space: The device is designed compactly, which can effectively save warehousing space and facilitate transportation. 3. Automation: The device has an automatic bundling system to make the operation easier. 4. Durable: Due to the use of high -quality materials, this device is stable and durable. 5. The scope of application is wide: In addition to the PET plastic bottle, it can also be applied to compressing all kinds of plastic and paper. In addition, according to product parameters, the block size of the machine is 1000mm (width) × 1000mm (height) × ~ 1600mm (long).Parameter Table
| Item | Name | parameter |
| mainframe parameter | Bale size | 1100mm（W）×1100mm（H）×～1600mm(L) |
| Material type | Scrap Kraft paper, Carton, Cardboard ,Soft Film | |
| Material density | 400～500Kg/m3（moisture 12-15%） | |
| Feed opening size | 1800mm×1000mm | |
| Output | 7-9tons/hour | |
| Main motor power | 37.5KW+11 KW | |
| Main cylinder | YG220/160-2600 | |
| Main cylinder force | 100T | |
| Max. system working force | 21MPa | |
| Mainframe weight(T) | About 19 tons | |
| Mainframe size | About 11×2.3×2.9M（L×W×H） | |
| Tie wire line | 4 line φ2.75～φ3.0mm3 iron wire | |
| Pressure time | ≤30S/ (go and back) | |
| conveyor technology Chain | Model | NK-II |
| Conveyor weight | About 5 tons | |
| Conveyor size | 2000*12000MM | |
| terra hole size | 7.303M（L）×3.3M（W）×1.2M（deep） | |
| Conveyor motor | 5.5KW | |
| Cooling system | Water tank | 6M3 |
| Motor | 0.75kw |
