Product Introduction

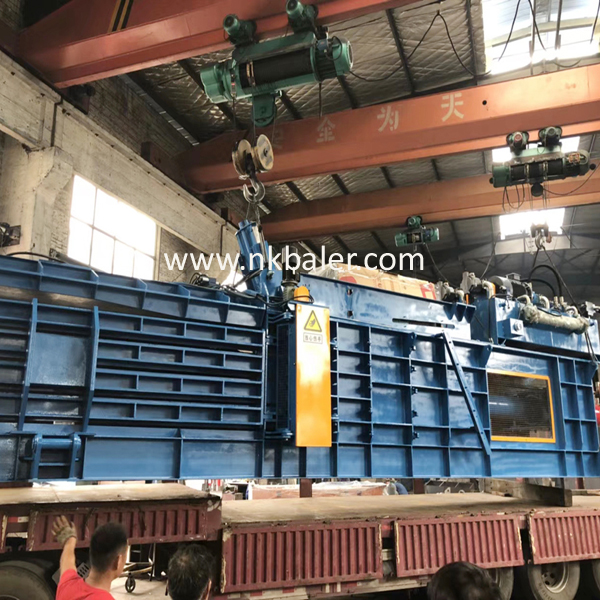

NKW100Q PET Packing Machine is a device for packaging PET (polytic benzenerite glycol) plastic bottle. It uses advanced automation technology to pack PET bottles quickly and accurately to improve production efficiency. The machine has stable performance and reliable quality, and is suitable for PET bottle manufacturers of various scale. The main functions of NKW100Q PET Packing Machine include: automatic feeding, automatic filling, automatic sealing, automatic labeling, etc. It can seamlessly connect with other equipment on the production line to achieve automation of the entire production process. In addition, the machine also has the characteristics of simple operation and convenient maintenance, saving a lot of labor and material costs for enterprises.Usage
NKW100Q PET Packing Machine is a device specifically used to compress the PET plastic bottle. The main features are as follows: 1. High -efficiency compression: The device uses advanced hydraulic technology, which can compress the PET plastic bottle into a compact block, which greatly improves the storage and transportation efficiency. 2. Environmental protection and energy saving: NKW100Q Pet Hydraulic Baling Machine is an environmentally friendly PET bottle compressed packaging equipment, which is mainly used to compress loose materials such as polyester bottle and plastic bottle. 3. Simple operation: The machine uses a hydraulic drive, which has the characteristics of high pressure, good compression effects and simple operation. 4. Multi -purpose machine: It is not only suitable for compressed packaging of PET plastic bottle, but also can be applied to compressed packaging of various types of plastic and cardboard. 5. Automated packaging: NKW100Q PET BOTTLE BALING MACHINE uses advanced technology and design, which can effectively compress the PET bottle into compact bundles, save space and facilitate transportation. 6. Flexible size: According to the need, the bundle size of the device can be 1000mm (W) × 1000mm (H) × ~ 1600mm (L).Parameter Table
| Item | Name | parameter |
| mainframe parameter | Bale size | 1100mm（W）×1100mm（H）×～1600mm(L) |
| Material type | Scrap Kraft paper, Carton, Cardboard ,Soft Film | |
| Material density | 400～500Kg/m3（moisture 12-15%） | |
| Feed opening size | 1800mm×1000mm | |
| Output | 7-9tons/hour | |
| Main motor power | 37.5KW+11 KW | |
| Main cylinder | YG220/160-2600 | |
| Main cylinder force | 100T | |
| Max. system working force | 21MPa | |
| Mainframe weight(T) | About 19 tons | |
| Mainframe size | About 11×2.3×2.9M（L×W×H） | |
| Tie wire line | 4 line φ2.75～φ3.0mm3 iron wire | |
| Pressure time | ≤30S/ (go and back) | |
| conveyor technology Chain | Model | NK-II |
| Conveyor weight | About 5 tons | |
| Conveyor size | 2000*12000MM | |
| terra hole size | 7.303M（L）×3.3M（W）×1.2M（deep） | |
| Conveyor motor | 5.5KW | |
| Cooling system | Water tank | 6M3 |
| Motor | 0.75kw |
